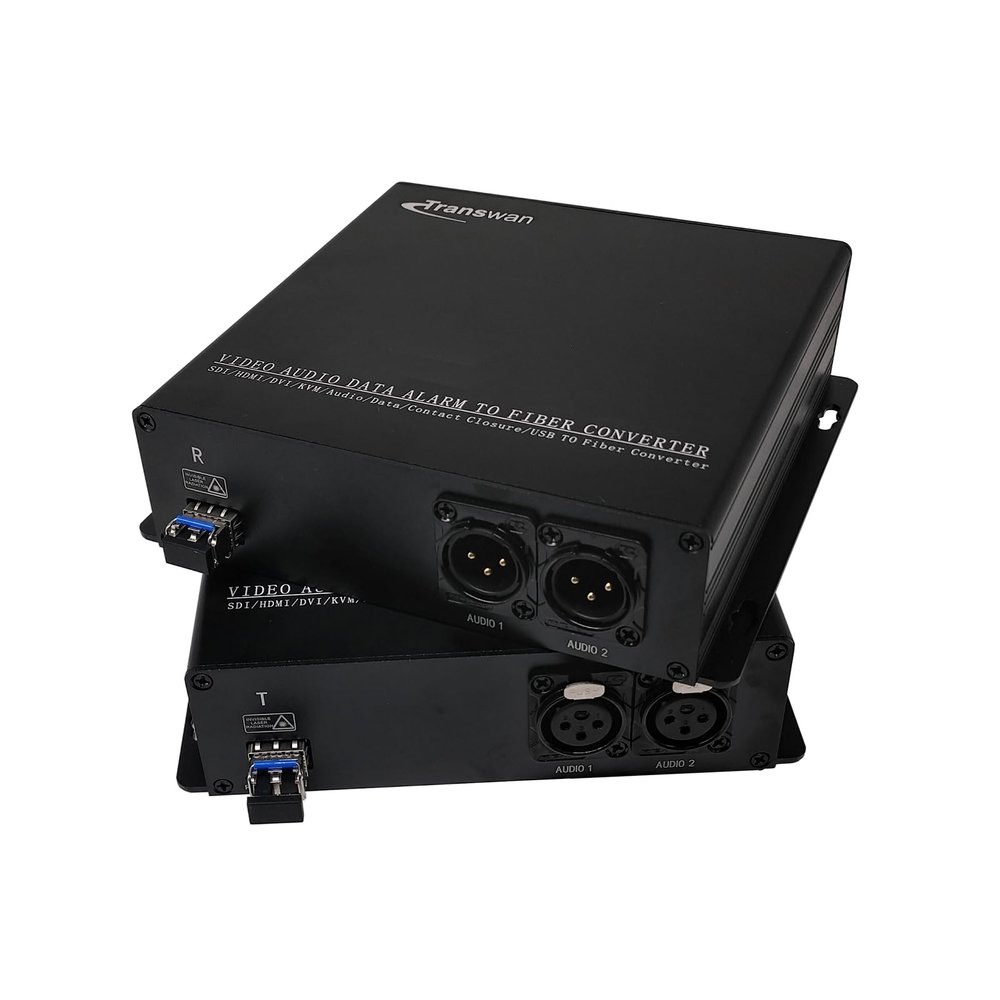

Transwan 2 Ch Balanced XLR Audio Over Fiber Extender with SFP Module, Line-Level XLR Audio to Fiber Converter to 20 Km 1 core SMF, Supports Professional Broadcast Quality Balanced Audio Interfaces

Description

• 2 Channels Independent (1 Way) Line-Level balanced audio XLR over 20 Km on Single-mode Fiber
• Supports 16-bit digitally encoded broadcast quality balanced professional audio interface.
• Plug & Play design ensures adjustment-free installation and operation, and optical adjustments are never required;LED indicators are provided to instantly monitor the system operating status.
• Easy stand-alone or rack-mount installation.
• Applications For Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV etc

BY-XLR-349-LC includes 2 Channels Line-Level (not Mic-level) balanced audio fiber optic transmitter and receiver, which supports 2 Channels 16-bit digitally encoded broadcast quality balanced audio over 1 Single-mode optical fiber to 20 Kilometers.

Line-Level Balanced Audio:
Number of Channels: Independent 2 Ch
Input Connector: XLRFemale)
Output Connector: XLRMale)
Input / Output Impedance:10K Ohm
Input capacitance LINE inputs:10 pF
Max input/output voltage: +4 dBu (1.228 Volts). if over the limit, the audio distortion will appear.
Response:10 Hz24kHz @3dB
Sample Rates From: 48kHz
SNR:> 80dB
Optical:
Wavelength: 1310nm
Output Power: -14~ -8dBm
Supported Optic Fiber Types: 9/125m Single-mode
Rx sensitivity: -30dBm
Optical connector: 1 x LC SFP module
Distance: 0~20 Kilometers
Electrical & Mechanical:
Input Power Requirements:DC 5V@2A
Power Adapter:AC 90V~240V
Power Consumption:100,000 hours

Applications:
Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications etc

Caution: wrong connection could damage our device or no sound out. about how to connect, please check the image of Application 1&2

Package:
1. 1 x transmitter with SFP module.
2. 1 x receiver with SFP module.
3. 2 x Power supply adapters with US/UK/EU/AU plug.
4. 1 x Manual
