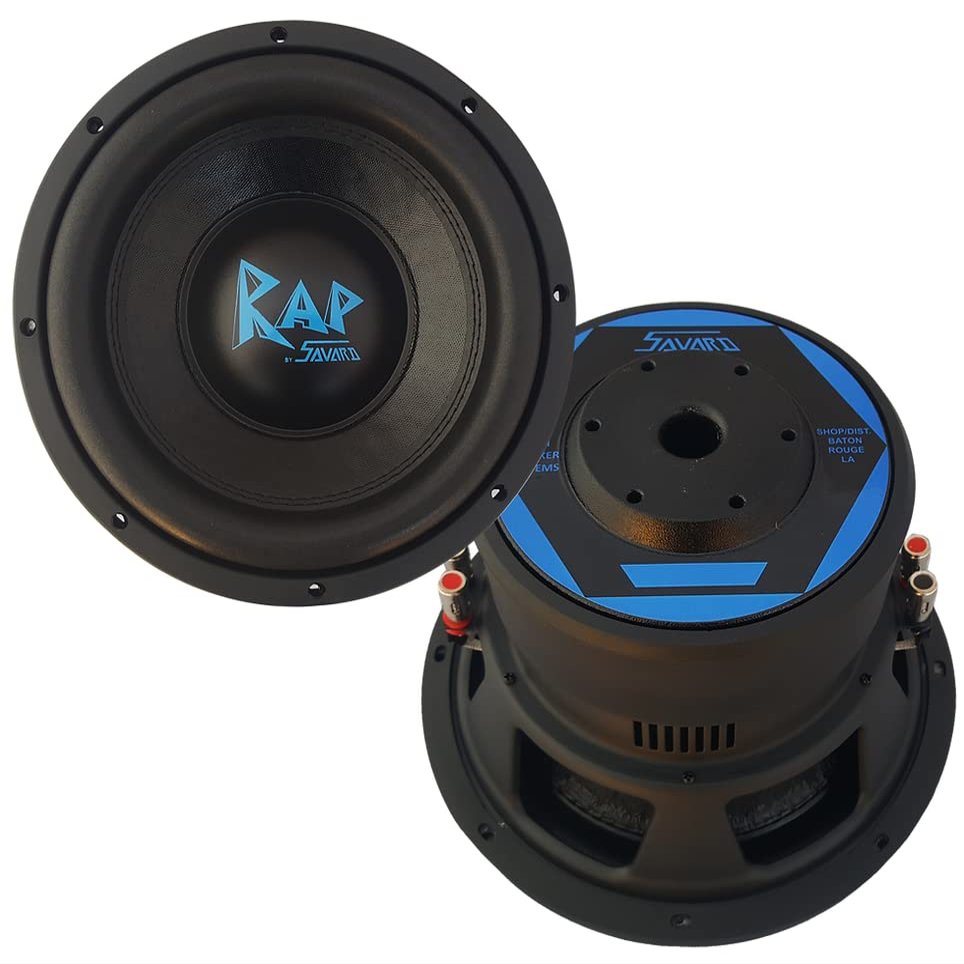

SAVARD Speakers Rap Series v2 10" D2 Ohm Subwoofer

Description

SAVARD Speaker Systems RAP Series 10 D2 Ohm Subwoofer

SAVARD RAP Series General Features:
Long Strand Kevlar Reinforced Cone
Tall Roll Nomex Surround with Double Stiching
Layered Progressive Conex Spider with Reinforced Layered Tinsel Leads
Over/Under Removable Gasket for Multiple Mounting Configurations
Stamped Aluminum Basket w/360 Venting
Pole Vent for Increased Cooling
2.5in Quad Layer Copper Voice Coil
2.25in Thick Y35 Ferrite Motor Assembly
10 AWG Spring Terminals

RAP 10 D2 Ohm Specifications:
Nomial Diameter: 10inch
Power Handling: 750w/RMS
Rec. Power Range: 450-900w/RMS
Dual 2-Ohm Impedance
Frequency Response: 18Hz - 120Hz
Sensitivity: 82.67 db 1w/1m

*PRE-Break-In* Thiele and Small Parameters:
Resonant Frequency (Fs): 46.57 Hz
DC Resistance (Re): 4.4 Ohm (series wiring)
Voice Coil Inductance (Le): 3.94 mH at 1kHz
Mechanical Q (Qms): 10.53
Electromagnetic Q (Qes): 0.932
Total Q (Qts): 0.856
Compliance Equivalent Volume (Vas): 0.38 cuft
Mechanical Compliance of Suspension (Cms): 0.07mm/N
BL: 15.63 Tm
Diaphram Mass w/ Airload (Mms): 178 grams
Displacement: 0.07cuft
16mm Xmax in One Direction 32mm Overall
SD: 52.56 in sq

Mounting Information:
Overall Diameter: 10.25 in
Baffle Cutout Diameter: 9.25in
Mount Depth: 6in
