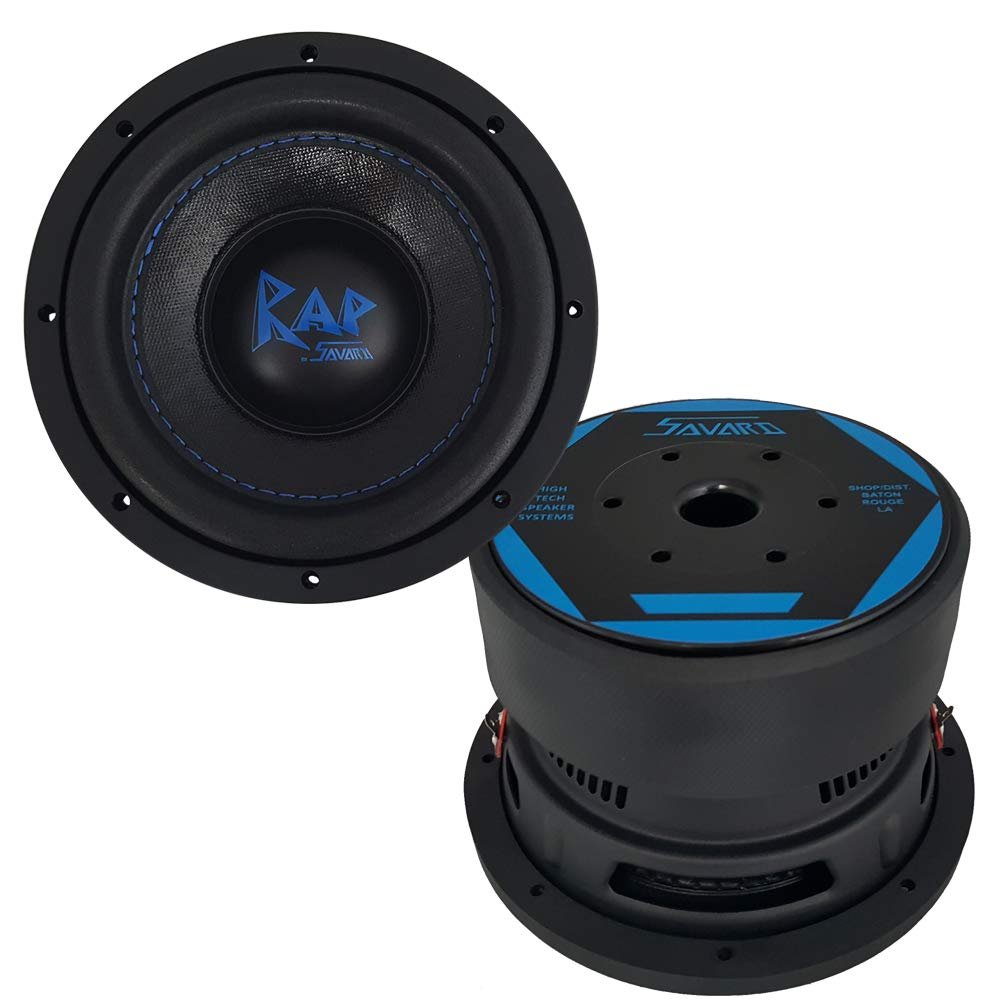

SAVARD Speakers Rap Series 6.5" D2 Ohm Subwoofer

Description

SAVARD Speaker Systems RAP Series 6.5D2 Subwoofer

SAVARD RAP Series General Features:
Long Strand Kevlar Reinforced Cone
Tall Roll Nomex Surround with Blue Stitching
Layered Progressive Conex Spider with Reinforced Layered Tinsel Leads
Over/Under Removable Gasket for Multiple Mounting Configurations
Stamped Aluminum Basket w/360 Venting
Pole Vent for Increased Cooling
2"in Quad Layer Copper Voice Coil
2in Thick Y35 Ferrite Motor Assembly
STD ProTab Terminals

RAP 6.5D2 Specifications:
Nomial Diameter: 6.5inch
Power Handling: 250w/RMS
Rec. Power Range: 150-350w/RMS
Dual 2-Ohm Impedance
Frequency Response: 20Hz - 300Hz
Sensitivity: 82.27 db 1w/1m

Thiele and Small Parameters:
Resonant Frequency (Fs): 58.27 Hz
DC Resistance (Re): 4.06 Ohm (series wiring)
Voice Coil Inductance (Le): 1.36 mH at 10kHz
Mechanical Q (Qms): 6.728
Electromagnetic Q (Qes): 0.572
Total Q (Qts): 0.527
Compliance Equivalent Volume (Vas): 0.11 cuft
Mechanical Compliance of Suspension (Cms): 0.105mm/N
BL: 13.61 Tm
Diaphram Mass w/ Airload (Mms): 71.2 grams
Displacement: 0.05cuft
10.5mm Xmax in One Direction 21mm Overall
SD: 22.58 in sq

Mounting Information:
Overall Diameter: 6.625 in
Baffle Cutout Diameter: 5.875-6in
Mount Depth: 4.125in
