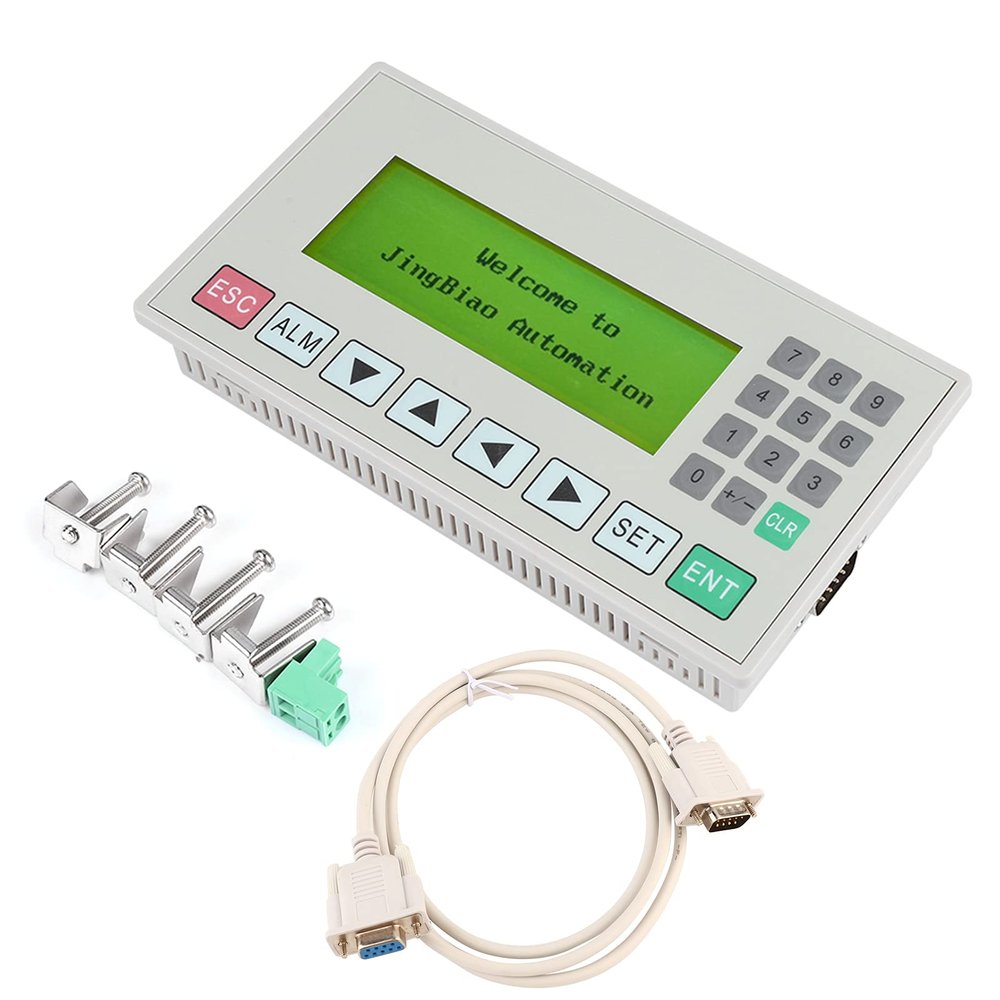

Brilluxa OP0-A 3.7 inch Text Display HMI Support S485/RS2 Communication Port with Cable for PLC,LCD Screen Text Display Module Text Display Board

Description

• OP0-A is a small man-machine interface, mainly used with various kinds of PLC (or intelligent controller with communication port)
• Communication protocol and screen data are downloaded to the display without PLC writing communication program
• Make pictures on the computer by editing software TP200CN, input Chinese characters freely and set PLC address, use serial communication to download the screen
• Monitor and modify the values and state of the internal registers or relays of the PLC in the form of text or indicator light so that the operator can control the equipment freely
• Made of ABS material original and imported chip, good Anti-shock and stable working performance

Features:
OP0-A is a small man-machine interface, mainly used with various kinds of PLC (or intelligent controller with communication port)
Monitor and modify the values and state of the internal registers or relays of the PLC in the form of text or indicator light so that the operator can control the equipment freely
Make pictures on the computer by editing software TP200CN, input Chinese characters freely and set PLC address, use serial communication to download the screen
Communication protocol and screen data are downloaded to the display without PLC writing communication program
It has password protection, has alarm list function, line by line real-time display current alarm information
With background light STN liquid crystal display, 24 English characters x 4 lines, that is, 12 Chinese characters x 4 lines
Made of ABS material original and imported chip, good Anti-shock and stable working performance

Specification:
Model: OP0 - A
Display size: 3.7 inches
Display type: LCD screen
Display color: monochrome
Resolution: 192 x 64 pixels
Brightness:60cd/m2
Processor: 8-bit processor
Memory: 64 KB Flash ROM
Input method: keyboard input
Communication port: COM1:PC RS2, PLC S485/RS2
Function button: 20 self-defined
Power off allowed: 20ms
Power supply :12~24V (V) 10%
Anti-interference test: voltage 1500v, p-p pulse cycle 1us, continuous 1S
Pressure test: 500vAC 1 min
Insulation : >10M
Shockproof test: 10~25Hz
Protection grade: IP65
Working temperature: 0 ~ 50
Working environment humidity: 20~90%RH
Storage temperature: d-20 ~70
Shell material: engineering plastics
Display size: 101*36mm/4*1.4in
Mounting hole size: 165*86mm/6.5*3.4in
Size:172*94*30mm/6.8*3.7*1.2in

Weight: Approx.338g/11.9oz

Package list:
1 x Text Display

4 x Mounting Bracket
1 x Power Cord
