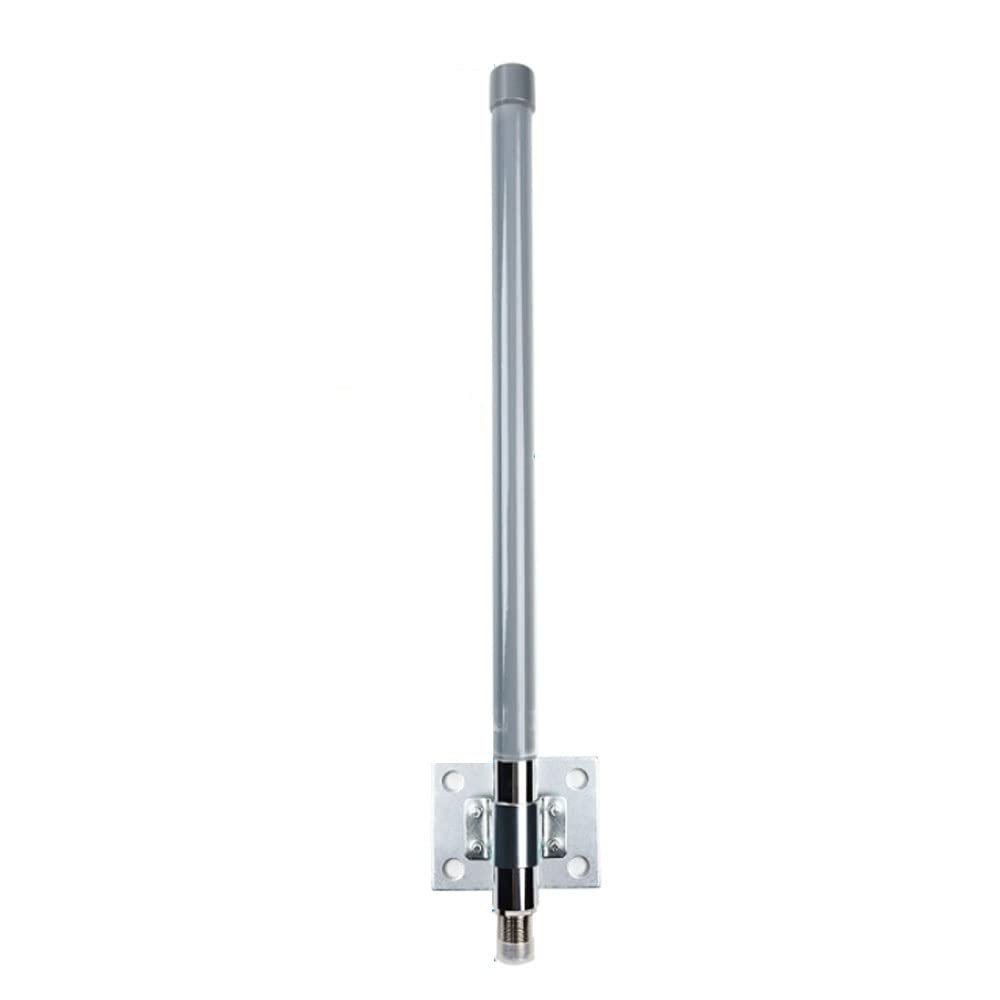

Omni-Directional Outdoor 1090MHz ADS-B Aviation Flightaware Antenna 5.5dbi for ADS-B Radios Systems SDRs Wireless Network

Description

• Omni-directional outdoor 1090MHz ADS-B Aviation Flightaware Antenna-Frequency :1060-1120MHz.High Gain :5.5dbi .Length :60cm.High Performance ADS-B 1090 MHz Omni Antenna with N female Connector
• Work for AirNav,HackRF,ADSBExchange,RadarBox24,ADS-B Flightradar24 via a Raspberry Pi,FlightAware Pro Stick+plus,GNU Radio,etc.
• Buy this antenna to improve your ADS-B signal. You can see more planes at a greater distance.
• Material (antirust) the antenna is made of fiberglass. The antenna structure inside is made of copper.The copper (element) tube is better than the circuit board. The copper (element) tube enables the antenna to obtain lower VSWR and withstand higher power.
• Use skills:Any antenna is heavily dependent on the surroundings.To achieve better results you may have to move around your hotspot and antennaheight and location of the installationuntil you determine a sweet spot that gives you the best rewards.You must take into considerations, antenna hight, location,building clearance, line of sight,etc.
• Inside /Outside /omnidirectional/Waterproof/Snow : You could put it inside if you need but outside would be even better.the antenna is designed to be waterproof and will last all seasons outdoors.Generally, the working ambient temperature can be: - 40 C to + 55 C,it work in the rain/snow.
• if need the lighting arrest and the LMR400 cable or other antenna,you can enter my store and order.
• Package List: 1 x Omni-directional outdoor 1090MHz ADS-B Aviation Flightaware Antenna

Omni-directional outdoor 1090MHz ADS-B Aviation Flightaware Antenna 5.5dbi for ADS-B Radios Systems SDRs Wireless Network
Frequency Range 1060-1120MHz .
Bandwidth 60MHz.
Gain 5.5dBi .
Polarization Vertical .
Vertical Half-power Beam width 360 .
Horizontal Half-power Beam width 28.
VSWR 1.5.
Input Impedance 50 .
Maximum input power 100W.
Lightning protection DC Ground .
Input connector type N Female .
Dimensions 20*600mm .
Antenna weight 0.6kg .
Radome material Fiberglass .
Radome color Gray .
Operating temperature -40~60 .
Rated Wind Velocit 60m/s.
Mounting way Pole-holding .
Mounting hardware 35mm~50mm.
