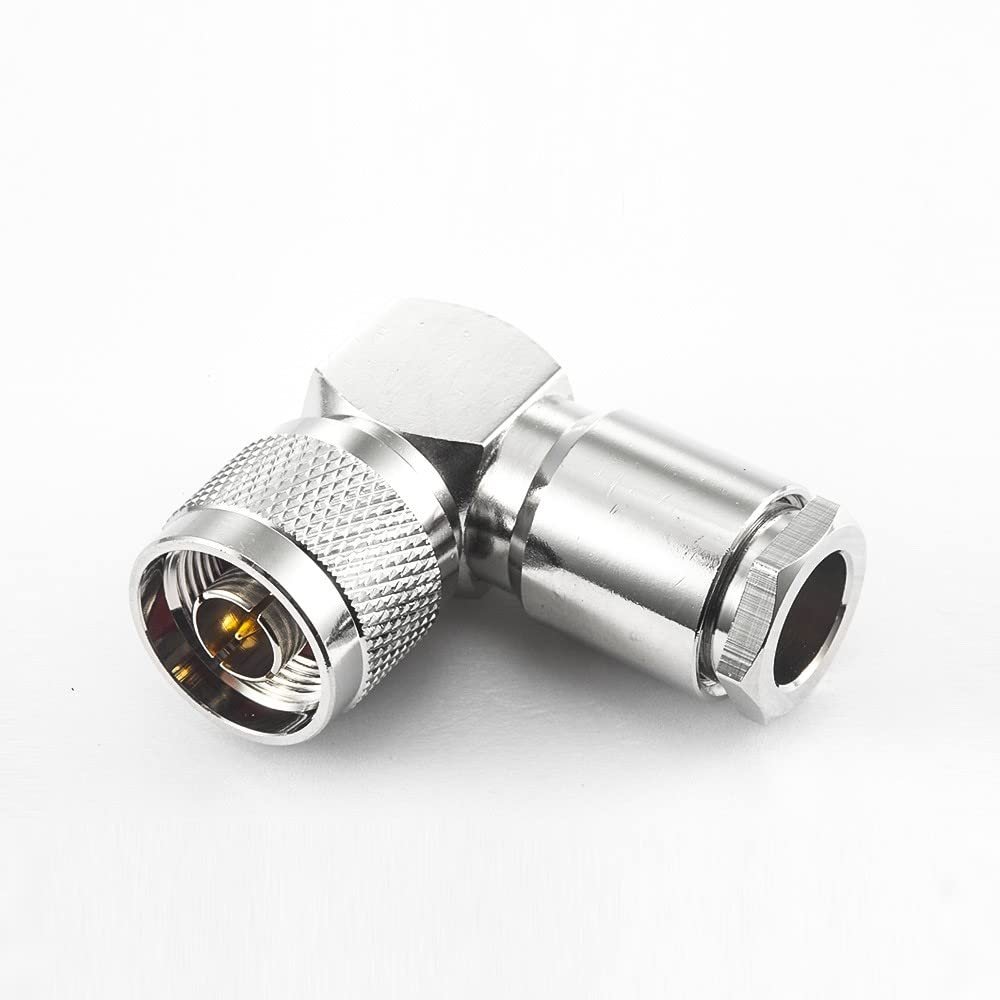

GXMRHWY N Type 90 Degree Connector Male Clamp for 7D-FB/LMR400

Description

• N,Male,Right Angle,Standard
• Great performance with DC to 11GHz Frequency and50ohm impedance;
• Threaded coupling mechanism ensure durability and stability for vibration application;
• Medium size used in military, industry or consumption electronic area, etc;
• High Quality with 30 days 100% Money back;

Aerospace and Defense
: Radar Equipment
Technology
: Ablation equipment
Commercial Vehicle
: Bluetooth and GPS
Telecommunications
: Antennas, Base Stations, Passive/Active Base Station Components, Telecommunication hardware
Data/Communications
: Broadcast Electronics, Wifi
Industrial
: Machine to Machine Communications
Technical Parameters:
Techinial Datasheet:
Electrical Characteristics
Impedance50ohm
Frequency Range: 0~13 Ghz
VSWR: Straight type 1.3max / R/A type 1.5max
Dielectric Withstanding Voltage: 2500 V rms
Working Voltage: 1000 V rms
Center Contact Resistance 1.0 m (Milliohms max.)
Outer Contact Resistance 0.2 m (Milliohms max.)
Insultation Resistance 5 x 10 m (Megohms min.)
Mechanical Characteristics
Coupling: 5/8-24 thread
Contact Retention: 6 lbs min.
Coupling nut torque: 30 in-lbs. min.
Durability(mating) 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
Temprature Range: -65C ~ +125C ( PE Cable-40C ~ +85C )
Vibration: MIL-STD-202 Method204
Corrosion resistance: MIL-STD-202 Method 101
Material:
Part
Material
Finish
Body
Brass
Nickel Plating
Chain
Brass
Nickel Plating
