FORTTAR WEIPU WF28 TV + ZG 9 pin Waterproof Connector, 5A 25A 500V High Voltage Aviation Electrical AC DC Signal LED Heavy Industrial Equipment Plug Socket (Angle, Flange Panel Mount, 9 Pin)

Description

• Part number: WEIPU WF28 TV + ZG, 9 Pin Waterproof Aviation Flange Panel Mount Connector, Termination type: Solder, Gender: Male plug female socket
• Contact diameter: 2.5x4, 1.0x5 Wire specification: <4m/11AWG, Default Cable specification: 11.5-13.6mm max
• Rated current: 5A 25A, Rated voltage (AC.V.): 500V, Weight: 2.65oz, PLEASE REFER TO 2ND PICTURE FOR SIZE AND PARAMETER DETAILS.

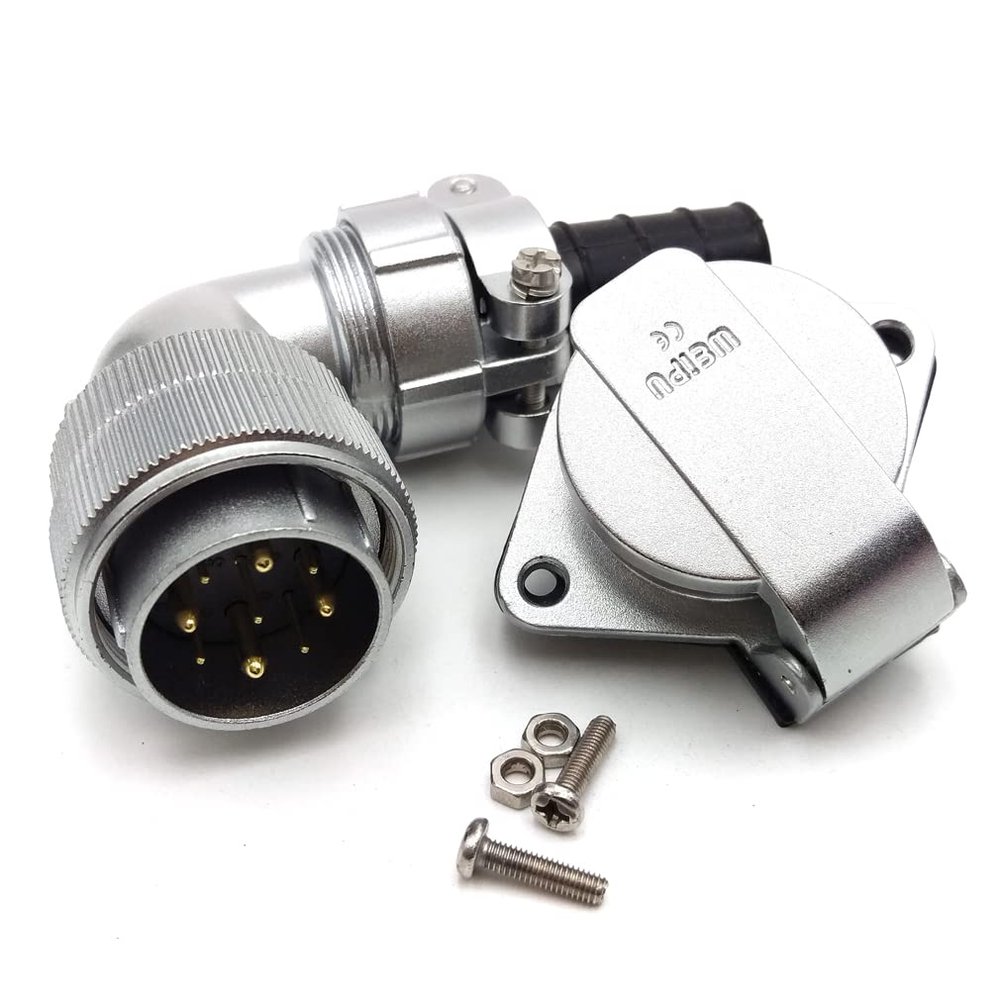

• What's in the package: 1 plug + 1 socket with metal cap(normal closed) + 2 set of screw, Type: Circular Waterproof Aviation Connectors
• Stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.

WEIPU WF28 IP67 Waterproof connector, 2 3 4 7 8 9 10 12 16 17 20 24 26PIN Aviation Connector
POWER CABLE AVIATION PLUG SOCKET

2pin, 3pin:
Rated Current (A): 50A
Contact diameter number: 3.5x2 / 3.5x 3
Rated voltage (AC.V.): 500V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 0.5m
Wire specification: <10m/7AWG

4pin, 7pin, 8pin, 10pin:
Rated Current (A): 25A
Contact diameter number: 2.5x5 /2.5x7 / 2.5x8 / 2.5x10
Rated voltage (AC.V.): 500V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 1m
Wire specification: <4m/11AWG

9pin:
Rated Current (A): 25A, 5A
Contact diameter number: 2.5x4, 1.0x5
Rated voltage (AC.V.): 500V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 1m, 5m
Wire specification: <4m/11AWG, <1.0m/18AWG

12pin, 16pin, 17pin:
Rated Current (A): 10A
Contact diameter number: 1.5x12 / 1.5x16 / 1.5x17
Rated voltage (AC.V.): 500V
Withstanding Voltage (AC.V) 1 minute: 1500V
Contact resistance: 2.5m
Wire specification: <2.0m/14AWG

20pin, 24pin, 26pin:
Rated Current (A): 5A
Contact diameter number: 1.0x20 / 1.0x24 / 1.0x26
Rated voltage (AC.V.): 400V
Withstanding Voltage (AC.V) 1 minute: 1200V
Contact resistance: 5m
Wire specification: <0.785m/18AWG

Other details:
Coupling: Push-pull
Shell Materia: Zinc alloy
Insert Material: PPS, max temperature 260
Contact materia: Brass (gold-plated)
Termination: solder (2 to 10 pin crimp available)
Cable outer diameter range: 11.5-13.6mm max
