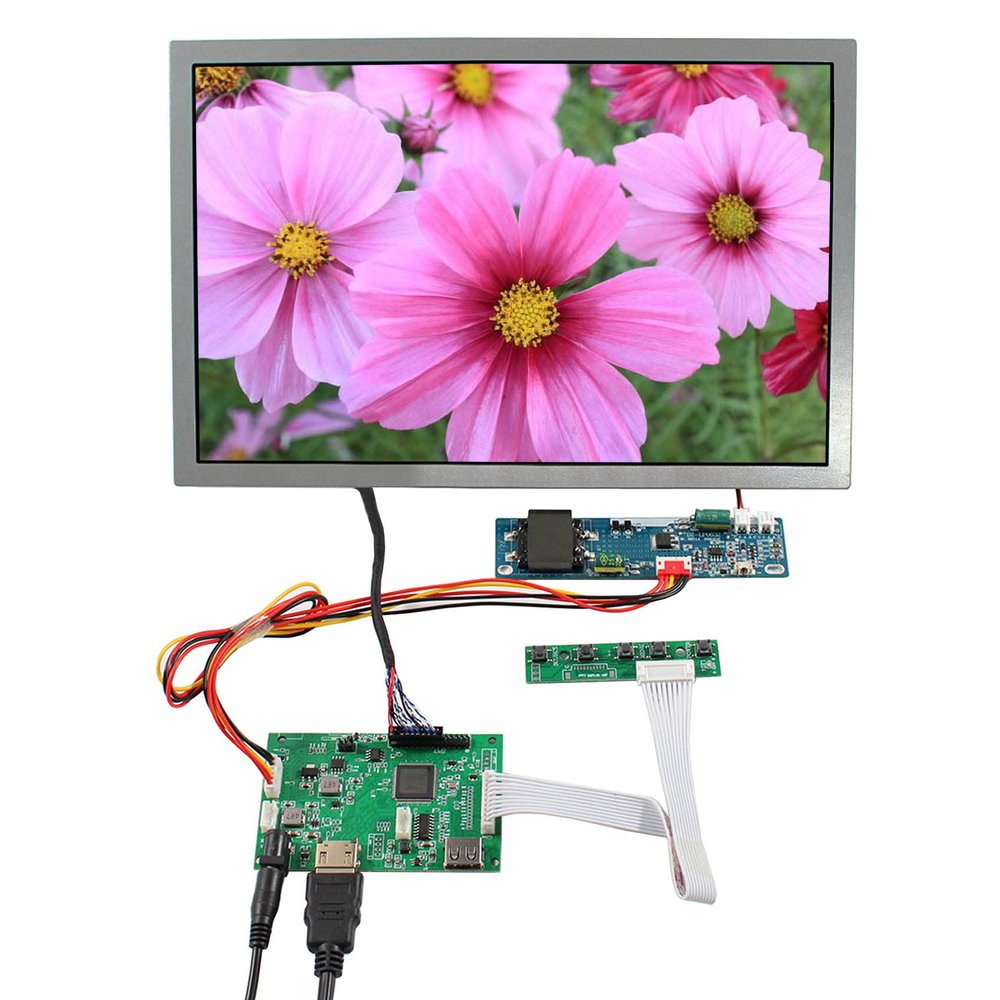

FanyiTek 12.1" AA121TD02 1280x800 1000nit Automatic Brightness TFT LCD Screen and USB Controller Board

Description

• 7 inch 700nit high brightness LCD display monitor ,178 degree full viewing angle ,display area :154.21 85.92(HV)mm, wled backlight ,Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC.
• Driver board video input: USB,USB output voltage 5Vdc max 500mA, Audio outputSpeaker 8ohm 2W or 4ohm 2W, Please use in insulated environment.
• Input Power Supply: 5V DC More than 2A (the voltage can only be 5V DC),Pls prepare power adapter by yourself.
• Plug and play: Connecting the cables and port as link picture details ,power on ,enter USB ,the screen can work well ,This panel support image 180 degree rotation, for DIY monitor using.
• Packing lists: 1 USB LCD Control Board VS-TY2660H-V827,1 7inch VS070T-006A 700nit high brightness LCD Screen,1 Keyboard With Cable

LCD Controller Board:
USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A,port size :5.5x2.1mm
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel: 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction template, automatic startup and shutdown of human body induction
Video Input: USB

USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 51mm x 14mm
12.1" 1280X800 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1280RGB)800
Outline Size 283 185.110(HVD)
Display Area 216.12 163.2 (HV)mm
Brightness 1000 cd/m (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 80/80/80/60 (Typ.)(CR10) [Left / Right / Up / Down]
Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)
8inch 800x600

Packing list :
1 LCD Board for 30Pin VS-TY2660HU-823
1 12.1inch 1280x800 LCD Screen
1 LVDS Cable
1 Backlight Cable
1 Keyboard With Cable
