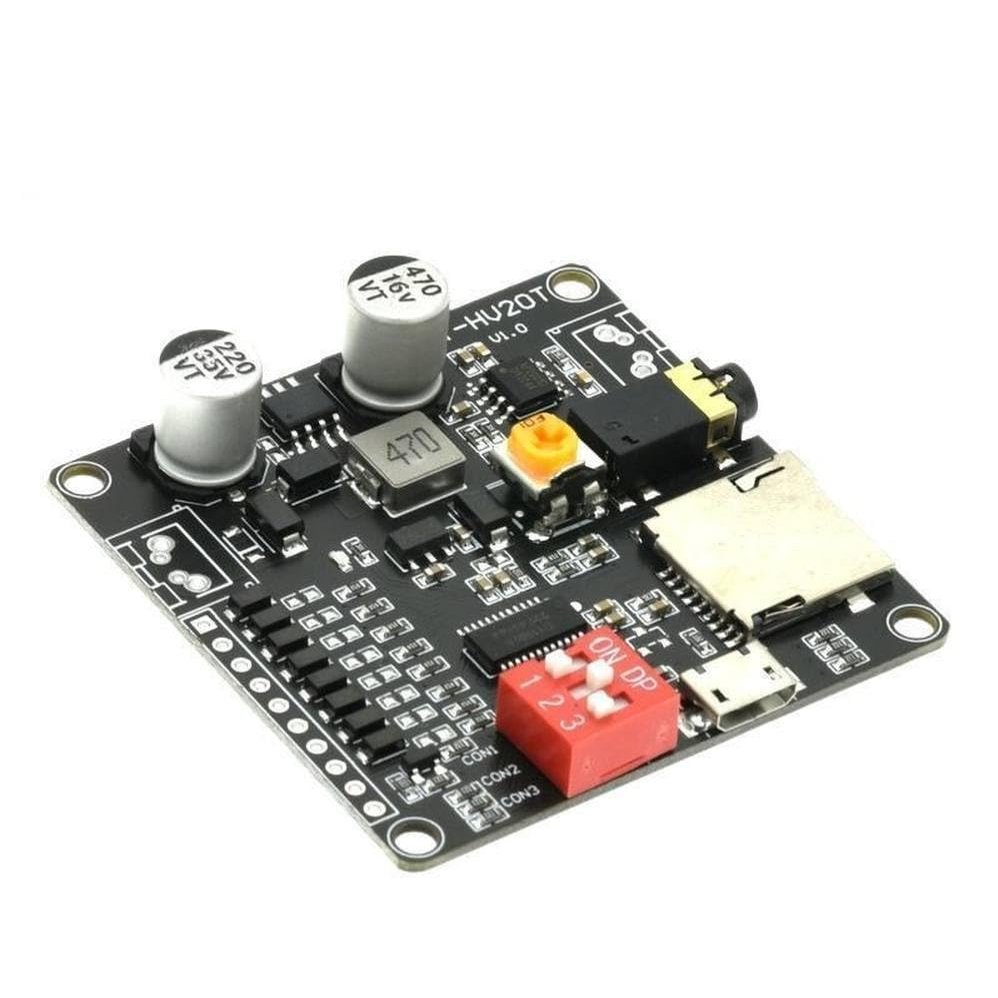

DY-HV20T HV20T 12V/24V 10W/20W Power Supply Voice Playback Module Supporting Micro SD Card MP3 Music Player

Description

• DY-HV20T HV20T 12V/24V 10W/20W Power Supply Voice Playback Module Supporting Micro SD Card MP3 Music Player

Product overview

DY-HV20T is an intelligent voice playback module, integrated IO segment trigger, UART serial port control, ONE_line single bus serial port control, standard MP3 and other 7 working modes, simple dip switch Settings; Onboard 20W Class D power amplifier; Support MP3,WAV decoding format, can support up to 32G TF card, can be connected to the computer through USB data cable update TF storage audio files.

DY-HV20T Industrial grade voice playback module:

Wide voltage power supply: DC:6~35V

High power output: Class D power amplifier output 20W

TF card storage: Support 32G memory card

8 channel I/O single or combination control playback

UART Serial port controls playback

OneLine Single-bus control playback

8-way IO design ESD protection

Supports 32GB TF card storage

USB directly copy audio files

Seven trigger modes are available for DIP switches

Onboard 20W Class D power amplifier

Onboard volume control knob

I/O one-to-one trigger play

UART controls the playback

Single bus control playback

Product characteristics

1, support MP3, WAV decoding format.

2, support the sampling rate (KHz) : 8/11.025/12/16/22 05/24/32/44.1/48.

3. 24-bit DAC output, dynamic range supports 90dB, signal-to-noise ratio supports 85dB.

4, DC 6~35V ultra-wide working voltage.

5, the maximum support 32G memory card, can be connected to the computer through the USB data cable update storage audio files.

6, integrated high-power amplifier output, driving 4 horn up to 20W, driving 8 horn up to 10W.

7, UART serial port control voice broadcast function, can control play, pause, music selection, volume increase or decrease and other functions, the maximum selection of 65535 tracks, baud rate 9600 bit/s.

8. Supports one-to-one IO trigge
