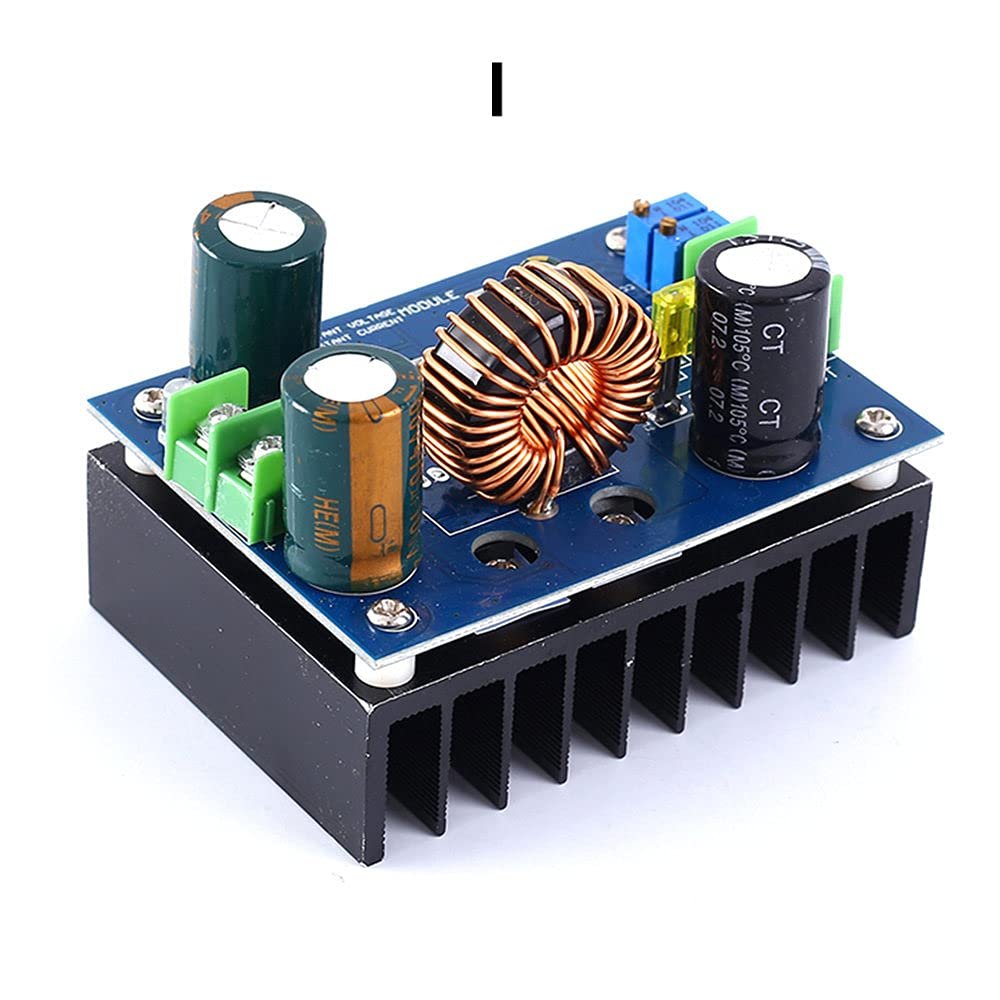

DC-DC 600W CVCC High Power Supply Module Non-Isolated 8V-60V to 12V-80V Step UP Converter Boost Module Support Solar Charging

Description

• DC-DC 600W CVCC High Power Supply Module Non-isolated 8V-60V to 12V-80V Step UP Converter Boost Module Support Solar Charging

DC-DC 600W CVCC High Power Supply Module Non-isolated 8V-60V to 12V-80V Step UP Converter Boost Module Support Solar Charging
1.
Descriptions:
It is a DC-DC 600W high power boost constant voltage constant current non-isolated power supply module.It supports adjust output voltage and output current.
2.Feature:
1>.Constant voltage constant current
2>.Adjustable output voltage
3>.Adjustable output current
4>.Non-isolated output
5>.Support over current protection
6>.Support short circuit protection
7>.Support output anti-backflow protection
3.Parameter:
1>.Input Voltage(Default): DC 12V~60V
2>.Input Voltage(Reset): DC 8V~16V(It just for 3pcs lithium batteries or 1pcs 12V battery)
3>.Module Type:Non-isolated
4>.Input current:16A(Max and it needs to add a heat sink if current is more than 10A)
5>.Quiescent Current:15mA
6>.Output Voltage:DC 12V~80V
7>.Output Current:12A(Max and it needs to add a heat sink if current is more than 10A)
8>.Output Power:600W(Max)
9>.Work frequency:150KHz
10>.Conversion efficiency:95%
11>.Over Current Protection:Yes
12>.Short Circuit Protection:Yes
13>.Output anti-backflow protection:Yes
14>.Operating Temperature:-20~85
15>.Operating Humidity:5%~95%RH
16>.Module Size:86*64*62mm
4.Adjust output voltage:
Adjust CV potentiometer to change output voltage to meet required.
5.Adjust output current:
1>.Rotate CC potentiometer counterclockwise more than 30 turns.
2>.Connect to load such as LED and ammeter.
3>.Rotate CC potentiometer constant current potentiometer clockwise to set output current to meet required.
6.Appliction:
1>.Industrial automation
2>.Scientific research equipment
3>.LED lighting
4>.Air purification
5>.Civil equipment
6>.Solar panel voltage regulator
7>.Battery charging
7.Package:
1>.1pcs DC-DC 600W CVCC High Power Supply M
