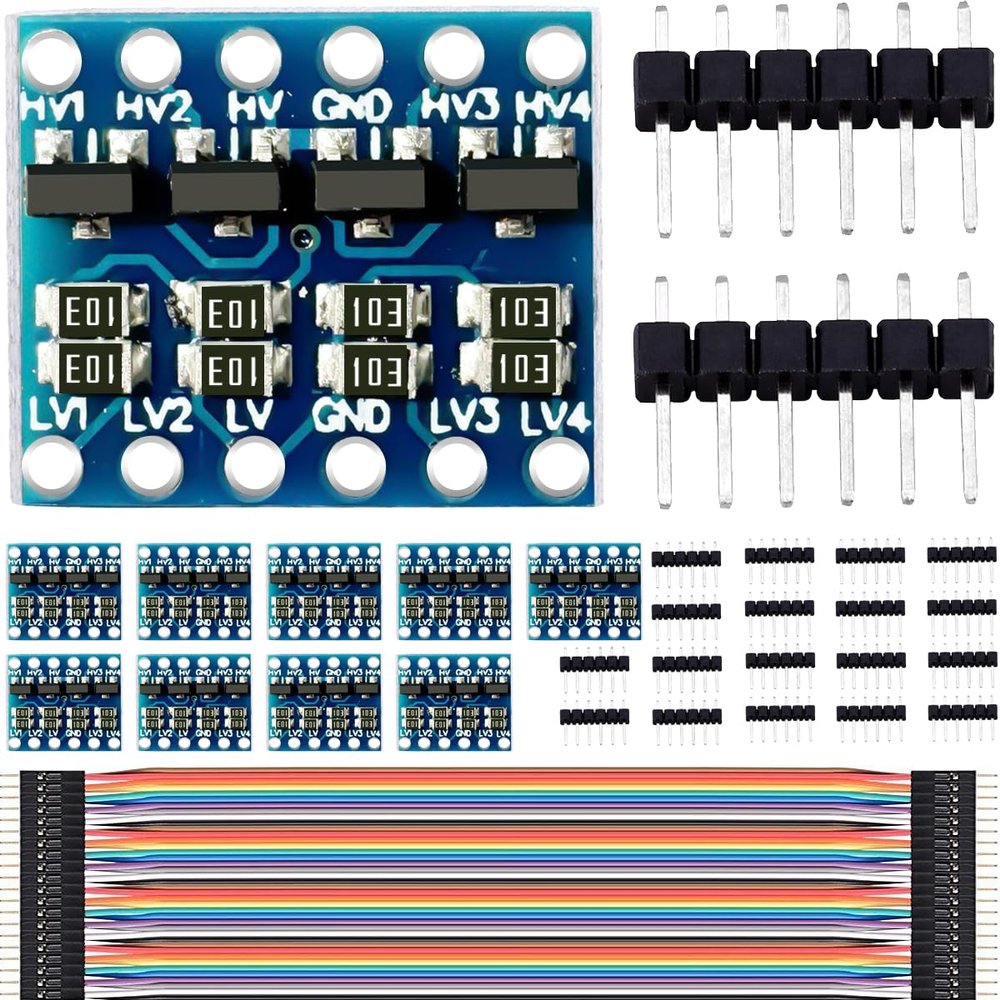

DAOKAI 10PCS IIC I2C Logic Level Converter 4 Channels Bi-Directional Level Voltage Module 3.3-5V Shifter for Arduino, with Dupont Cable

Description

• Module: 4 channels bi-directional logic level converter is a small device, which can safely steps down 5V signals to 3.3V and steps up 3.3V to 5V at the same time
• Instructions for use: HV1-HV4 is connected to the pins to be communicated by the 5V system, and LV1-LV4 is connected to the pins to be communicated by the 3.3V system. For example, the 5V system A and the 3.3V system B are two systems for IIC communication
• Notice: This module cannot be used as a voltage stabilizer or transformer, and can only be used for small current communication between 10-port levels
• Scope of application: serial communication between 5V microcontroller and 3.3V microcontroller, serial communication between 3.3V serial port downloader and 5V microcontroller, serial communication between 5V microcontroller and 3.3V application module, 5V and 3.3V level communication between serial ports, and UART, Bidirectional conversion of 3V-5V level of bus signals such as ICC, 1-wire, SPI, etc
• Package includes: You will get 10 x 4 Channels Logic Level Converter Bi-directional Shifter Module, 20 x 6Pin Single Row Pin Header,1 x 40pin Male to Male Dupont Cable

Parameters:
Comes with 3.3V voltage output
With power indicator
Power input with anti-reverse polarity protection
And can provide external current not more than 120mA
Stable communication baud rate 28800bps
The module is breadboard compatible and can be directly plugged into the breadboard for use

Scope of application:
The 5V microcontroller communicates with the 3.3V microcontroller serial port.
The 3.3V serial port downloader communicates with the 5V microcontroller serial port.
The 5V microcontroller communicates with the 3.3V application module serial port.
Realize 5V and 3.3V level communication between serial ports.
It can realize bidirectional conversion of 3V-5V level of bus signals such as UART, ICC, 1-wire, and SPI.

Package includes:
10 x 4 Channels Logic Level Converter Bi-directional Shifter Module
20 x 6Pin Single Row Pin Header
1 x 40pin Male to Male Dupont Cable
