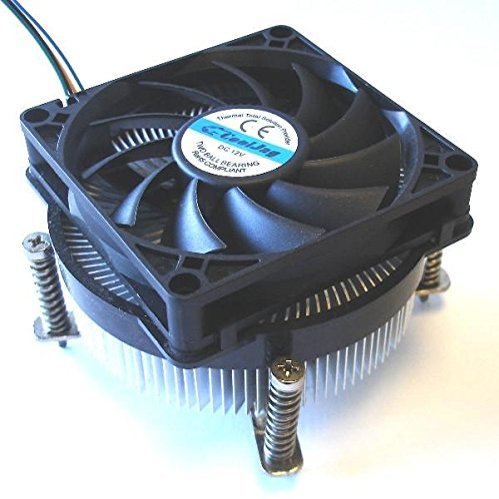

Cooljag CPU Cooler and Fan for Intel 1366 BOS-D2 (1366)

Description

• OEM/ODM heatsinks
• Model no.: BOS-D2 (1366)
• Application: For Intel Core i7, i5, i3, Core 2 Duo & Pentium 4 Socket 1366/1356/775
• Dimensions: 123.64 mm (L) x 123.64 mm (W) x 51.4 mm (H)
• Materials: AL + Copper Core

Application: For Intel Core i7, i5, i3, Core 2 Duo & Pentium 4 Socket 1366/1356/775

Cooljag Thermal Solutions is a renowned manufacturer of cooling devices specializing in OEM/ODM heatsinks: Copper, Aluminum, Heatpipe, Skive Fin, Staked Fin, and Extrusion Solution.
Cooljag targets specific thermal problems and finds the best overall solution for heat transfer, airflow, noise and cost.

Description:
Model no.: BOS-D2 (1366)
Application: For Intel Core i7, i5, i3, Core 2 Duo & Pentium 4 Socket 1366/1356/775
Dimensions: 123.64 mm (L) x 123.64 mm (W) x 51.4 mm (H)
Materials: AL + Copper Core
Weight: 490 g
PWM Function: YES
Thermal Grease: Dow Corning SC102
Includes Backplate Bracket

Fan Specifications:
Fan size: 80x80x15mm
Fan voltage: 12V
Bearing: Dual Ball bearing
Fan speed: 1200~ 4200 RPM
Noise Level: 21~39.9 dBA
Air Flow: 13.31~46.57 CFM
Power: 1.2~ 6 W
Static pressure: 0.33~3.99 mmH2O
Fan connector: 4-pin
Lead wire: UL1061 #26AWG or equivalent
Pin Assignment: Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
